Technical Information (MGB 1B)

Engine Restraint Kit

Last Modified - 10/30/02

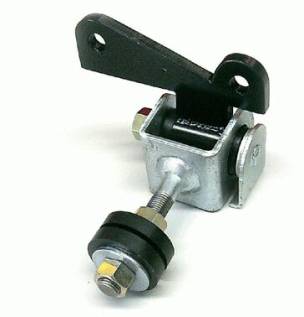

The illustration above shows the complete restraint assembly. This assembly bolts directly to the rear of the all-synchromesh transmission and the original gearbox crossmember assembly. Sold under part number MGB/BRKT @ $141.75

ENGINE RESTRAINT KIT COMPONENTS

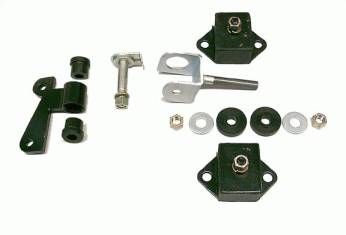

The illustration above shows the components that make up the engine restraint kit. Items A - F are available individually.

A. Part # TRANS/BRKT Designed to bolt directly on to the transmission. $50.00

B. Part # 280-054 Polyurethane bushing set (2) $8.96

C. Part # 413-140 Stay rod pin. Use your original pin if necessary. $22.45

D. Part # AHH6056/M Stay rod - (shortened and rethreaded). Your original stay can be modified as follows: Shorted rod to 2.625" and rethread 3/8" SAE to a length of 2" $44.26

E. Part # 413-050 Transmission mount set (2) $7.12 .

F. Part # HARDWARE Required to install assembly. Includes 2 special stepped Delrin washers $10.94
